These heating cables can be laid in any configuration under all floor coverings that are suitable for underfloor heating.

RMS Twin heating cable for indoor and outdoor use

Unusual room shapes with angles or rounded surfaces pose no problems for this highly flexible heating cable. It can be installed in any conceivable shape of room. This extremely multi-functional heating cable can also be used for the sitting and reclining surfaces of tiled relaxation and resting furniture.

The power output of the RMS Twin heating cable can be freely selected and therefore allows optimum heat adjustment to the required temperature.

Application examples:

  • Floors of living area e.g. with difficult shapes or in addition to floor heating mats
  • Conservatories
  • Carport roofs
  • Greenhouses
  • Gutters, downpipes
  • Outdoor steps
  • Underground car park entrances

RMS Twin heating cables offer the following superb features:

  • Fully assembled, with 3 m PTC thermistor connection cable on one side only.
  • Can be laid under all floor coverings such as tiles, stone, wood, laminate, carpet, cork, PVC etc.
  • Absolutely no maintenance or wear-and-tear.
  • Sophisticated, intelligent control technology ensures energy-saving control.
  • Practically no electrosmog.
  • Protection class II, protection category IP X7. The RMS Twin heating cables are suitable for wet areas and can therefore also be used in steam baths, saunas, swimming pools etc.
  • RMS Twin heating cables are manufactured in compliance with the pan-European VDE standards DIN EN 60335-1, DIN EN 60335-2 and DIN EN 50366.
  • Output per linear metre 15 W, 20 W or 30 W (resistance tolerance -10%/+5%).
  • Every RMS Twin heating cable is subject to strict quality and functional testing.
  • 10-year manufacturer guarantee, 100% German-made quality.

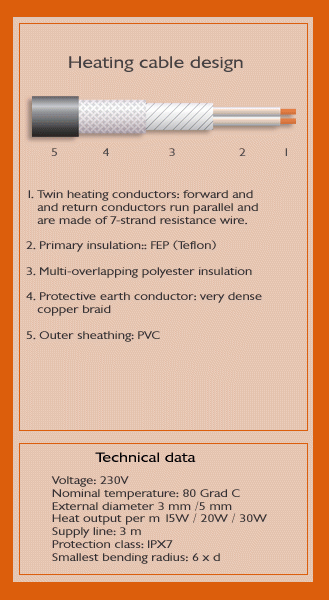

Type 15W/m

  • Voltage 230 V AC
  • Output 15W/m
  • Cable diameter 3 mm
  • Insulation FEP (TEFLON®)
  • Additional polyester insulation
  • Copper shielding
  • PVC exterior insulation
  • Supply line 1x3 m

Type 20W/m

  • Voltage 230 V AC
  • Output 20W/m
  • Cable diameter 5 mm
  • Insulation FEP (TEFLON®)
  • Additional polyester insulation
  • Copper shielding
  • PVC exterior insulation
  • Supply line 1x3 m

Type 30W/m

  • Voltage 230 V AC
  • Output 30W/m
  • Cable diameter 5 mm
  • Insulation FEP (TEFLON®)
  • Additional polyester insulation
  • Copper shielding
  • PVC exterior insulation
  • Supply line 1x3 m

Voltage 12 V
Output 15W/m

  • Cable diameter 1,5 mm
  • Insulation FEP (TEFLON®)
  • Additional polyester insulation
  • Copper shielding
  • Supply line 2x1,5 m
